FREEZER ROOMS - Professional Installations by MARCOLD in Cape Town

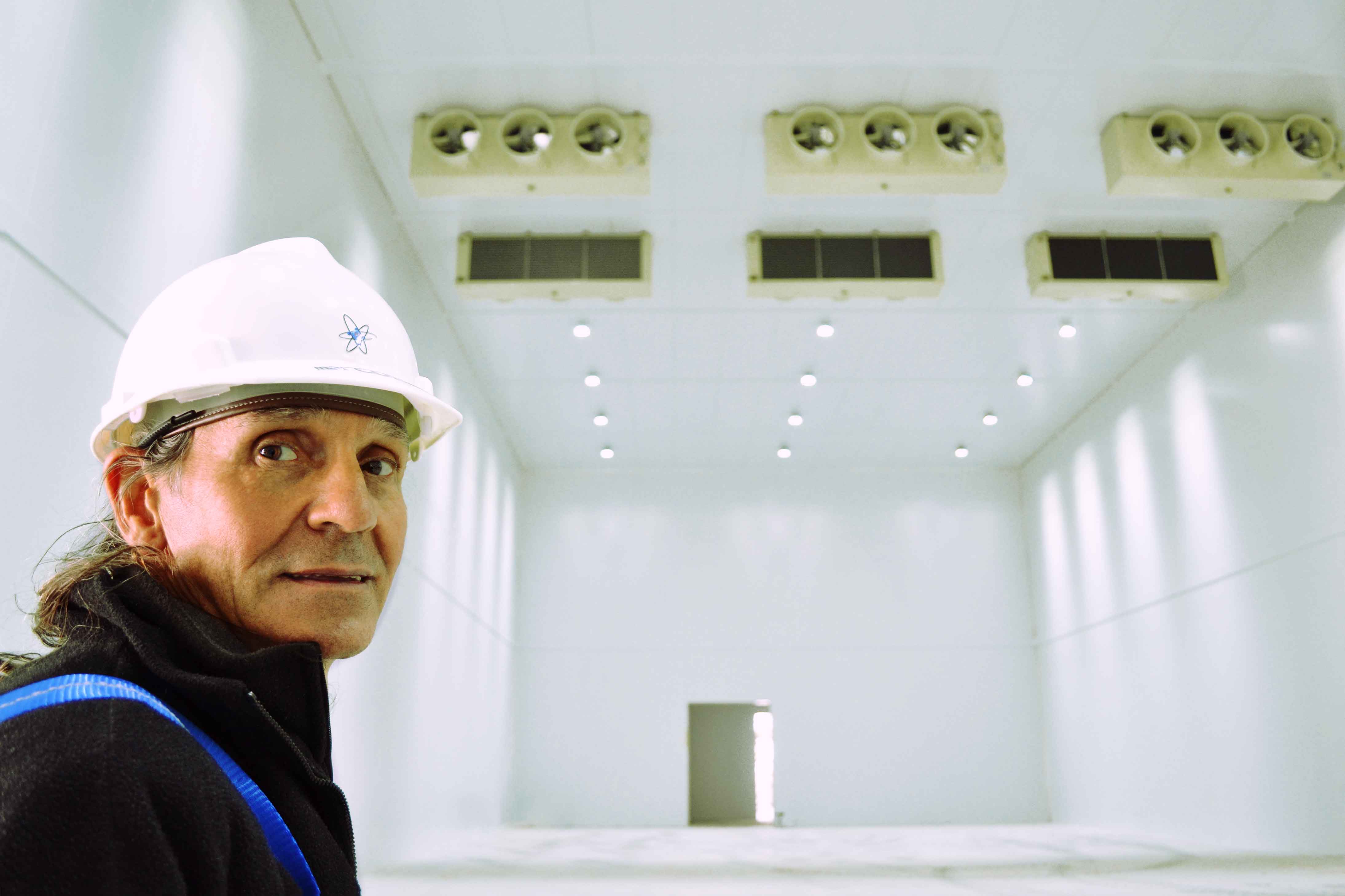

A walk-in freezer room is an insulated, refrigerated room to maintain a temperature of between -20°C to -25°C.

It is accessible by at least one door which is large enough for at least one person to walk through.

Walk-in freezer rooms have been a staple storage solution for many years.

Walk-in freezer rooms are mostly used for the commercial storage and preservation of food items and or medicinal supplies for months (or even years) at a time by companies in the hospitality, sciences and food industries.

Freezer rooms types and temperature ranges:

Holding Freezer Rooms
These are freezer rooms which are designed to hold product which are already frozen, at a temperature of between -20°C to -25°C (dependant on client specifications).
Fast Freezers Rooms
These are freezer rooms which are designed to freeze and hold produce at a temperature of between -20°C to -25°C (dependant on client specifications).

How does the refrigeration system of a walk-in freezer room work?

→ The refrigeration system of a walk-in freezer room consists out of a compressor, condenser and evaporator.
→ The compressor compresses a refrigerant at a high pressure and this refrigerant then condenses in the condenser, expelling excess heat.
→ The high-pressure liquid refrigerant is passed through an expansion device to the evaporator where the low-pressure liquid evaporates, absorbing heat.
→ This energy absorption cools down the evaporator coils and the air moving over it.
→ Fans circulate the air moving over the cold evaporator coils, thereby cooling the freezer room and the products it contains.

at marcold
we know
that

At marcold we know:

That the integrity and "safeness" of the produce to be stored in your freezer room is of utmost importance to you.

We know that you want a reliable freezer room which must run constantly, giving you peace of mind.

We know that you desire a freezer room which would run cost-effectively, with low running costs over an extended period of time (saving money).

We also know that:

- You do not want to lose your produce.
- You do not want to be worried about the idea of potentially losing your product.
- You do not want your workflow to be interrupted by freezer room down times.
- You do not want a freezer room which requires constant repairs.
- You do not want high maintenance fees.

We know
you want a reliable
always optimally functioning freezer room
running cost-effectively
saving you money
via:

- No product losses (avoidable).

- Relative low electricity usage.

- Overall low running costs.

- Low maintenance fees.

- Relative low repair expenses.

The ability to resolve issues before they occur, makes for a professional designer.

marcold
installs
new
freezer rooms

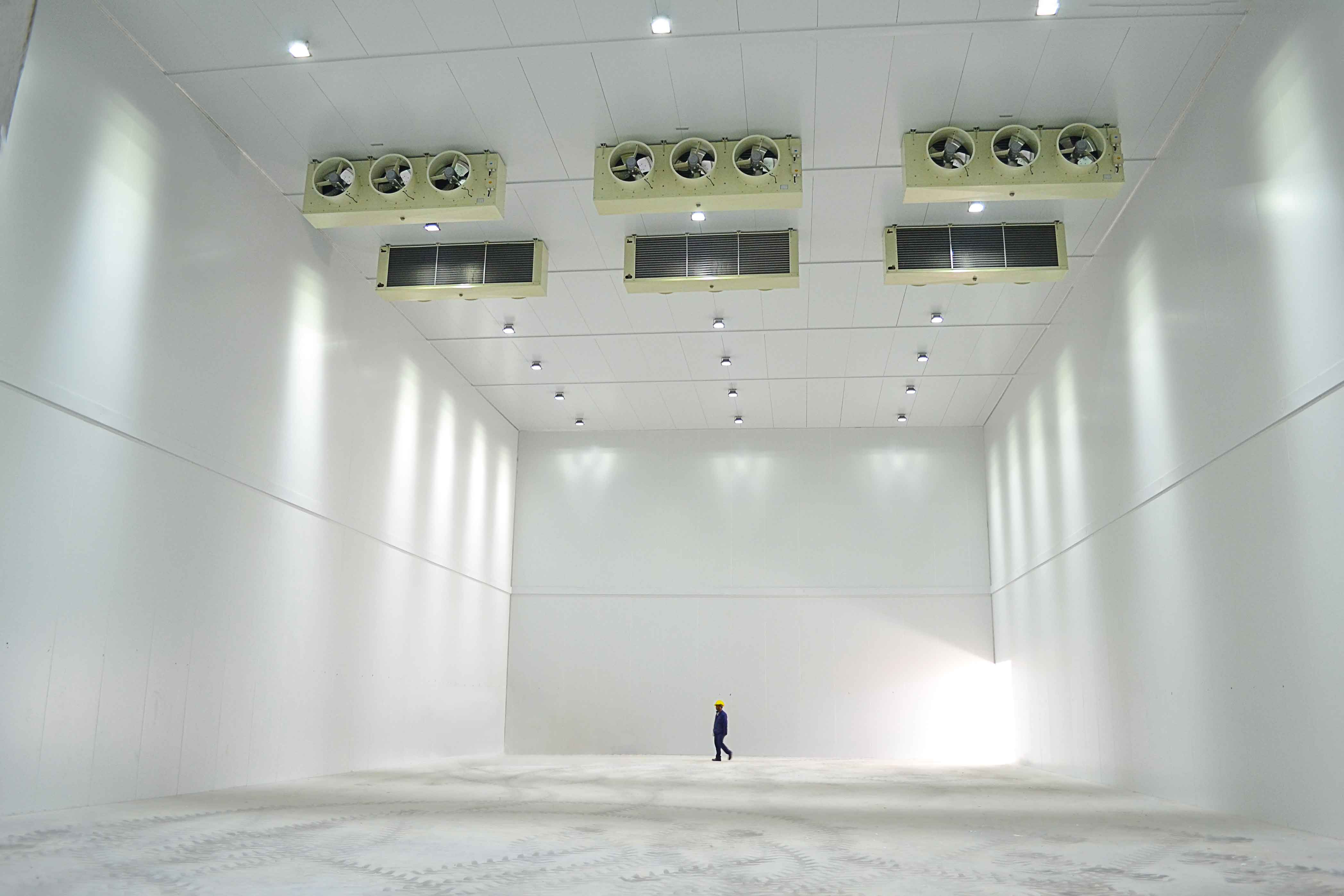

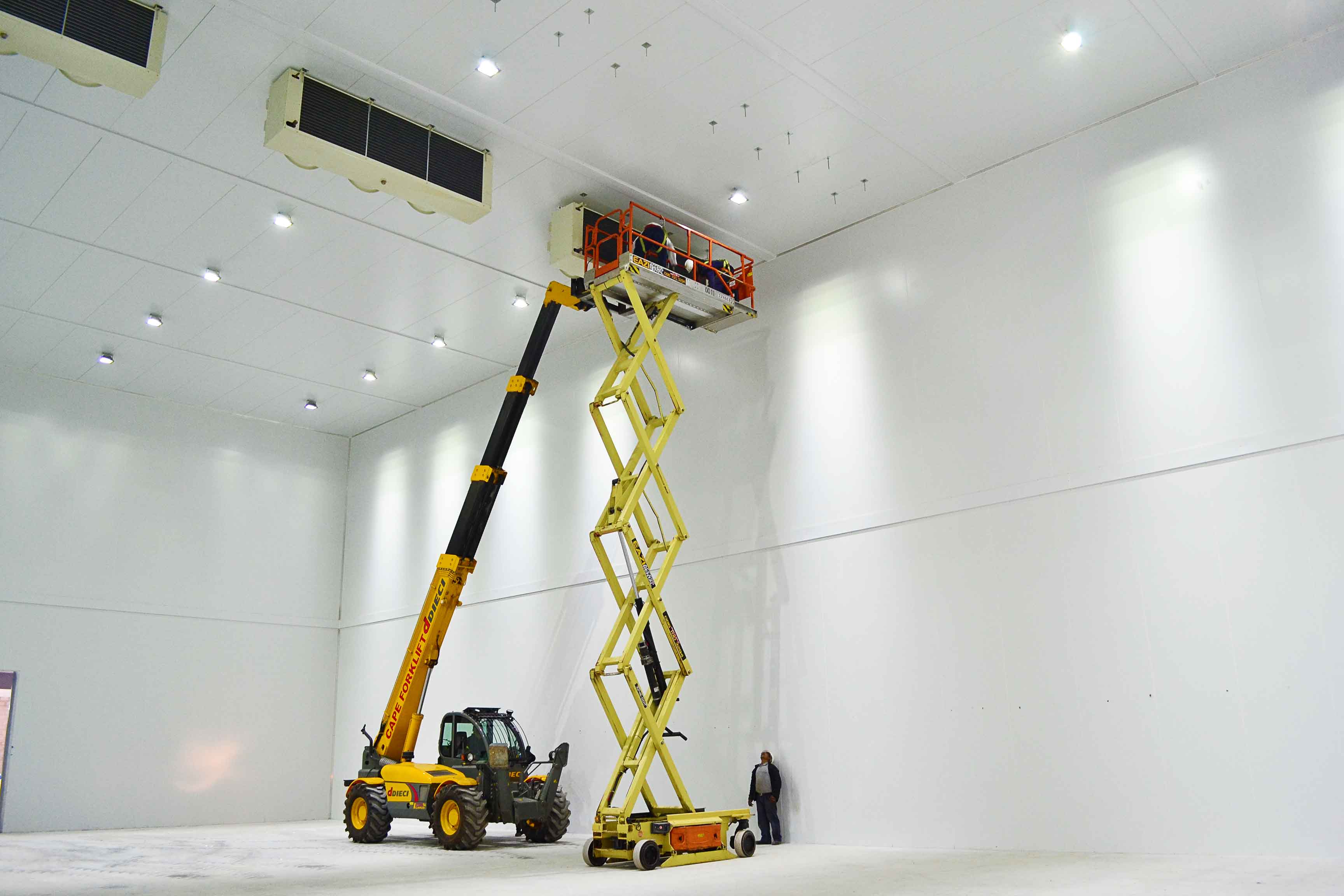

New

Freezer Room Installations

At Marcold We Have Already Successfully:

» Custom-Designed
» Supplied
» Installed
» Serviced and
» Maintained brand new walk-in freezer room installations.

Freezer rooms can be costly storage solutions. Therefore, lots of care, consideration and dedication needs to be taken when designing the detail of onsite walk-in freezer rooms.

Our freezer rooms are purpose-built according to client application and need.

To avoid external factors from compromising stored produce, we make every effort to ensure that our freezer room refrigeration systems are to be successful in maintaining constant temperatures relative to usage, length of time doors are to be open (based on client forecasts), seasons, and or weather conditions.

Thus, to provide stable and even temperature control, to boost stock longevity.

refrigeration system
equipment
for
freezer rooms

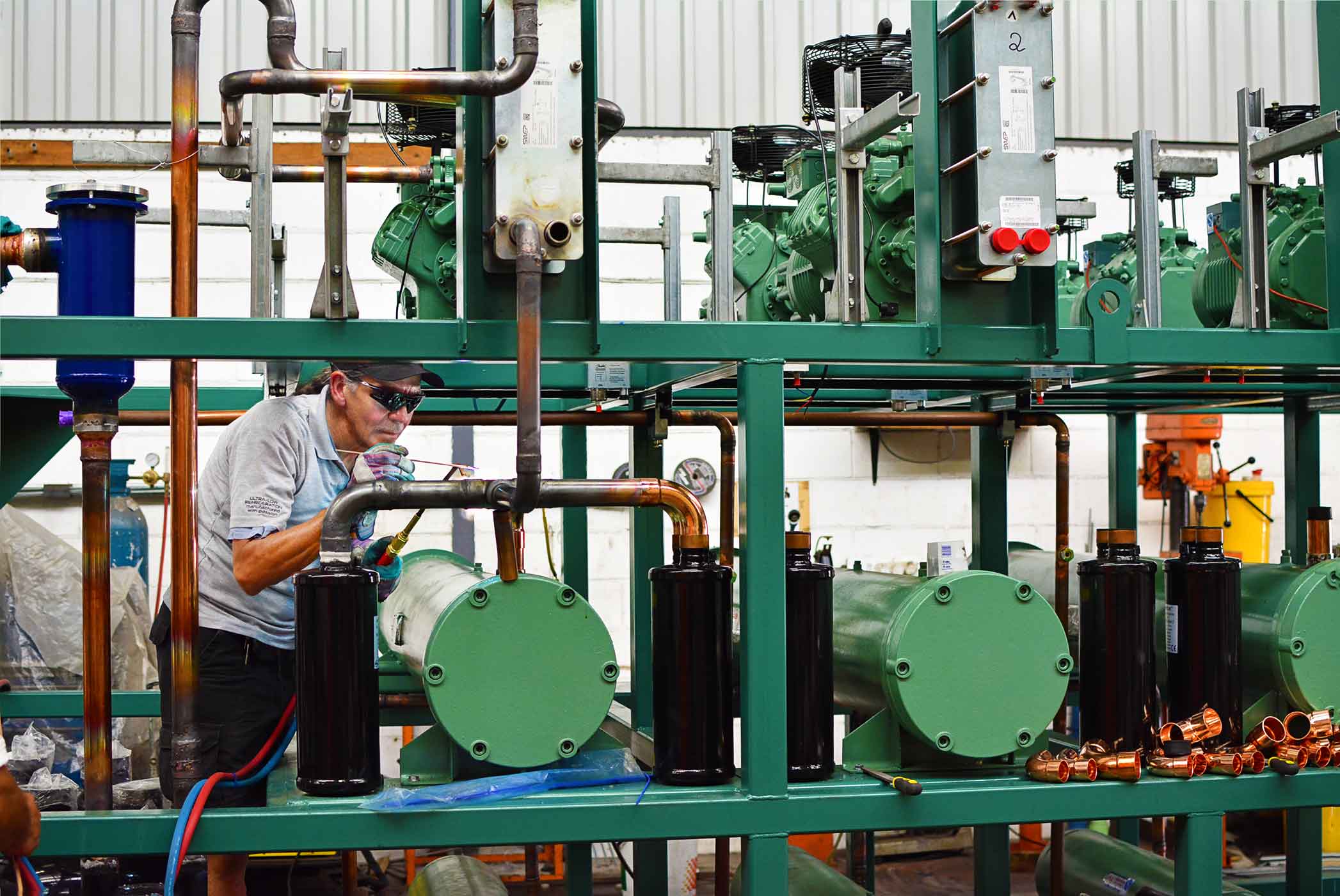

freezer room refrigeration equipment installed by marcold

At marcold our freezer rooms refrigeration systems are custom-designed.

We calculate and select the correct and optimally sized refrigeration equipment for the job at hand.

We make sure that our selected equipment combinations meet the needs (current and future) of our clients refrigeration requirements and product protocols, in order to obtain a cost-effective and reliably functional freezer room.

Our freezer rooms refrigeration systems are designed to ensure a constant climate at any given time.

We can design freezer room refrigeration systems to maintain a consistent temperature ranging anything between -20°C to -25°C as determined by the client's need.

Equipment we install can include:

» Compressor Racks

» Compressors

» Pressure Controls

» Oil Separators

» Oil Management & Control

» Suction Accumulators

» Heat Recovery For Potable Hot Water

» Cooling Towers

» Evaporative Condensers

» Condensers (water-cooled, air-cooled)

» Evaporators

» Valves

» Refrigeration Tubing

» Cooling Tower Piping

» Drain Piping

» Refrigerants

We only make use of NON-CFC refrigerants, which are environmental-friendly odourless gasses for Freon applications.

Other equipment we install relating to the freezer room include:

» Air Curtains (PVC strip curtains)

» Force Draft Air Curtains

marcold
repairs
old
freezer rooms

Old

non-marcold

Freezer Room Installations
As installed by other companies

We Have Also Already Successfully:

» Serviced
» Fault Diagnosed
» Repaired and
» Maintained

Old, faulty, non-functioning
non-marcold
freezer room installations
which were previously installed by other companies.

take note
take care
be aware

Be Carefull Of
Cheap Quotes

We know that you will be tempted to go with the cheapest given quote.

But be aware that cheap = very expensive in the long run.

Companies supplying cheap quotes usually cut everything except their profits in order to arrive at such a low priced quote.

They engage in aggressive cost cutting measures by:

→ Cutting corners in the design of their refrigeration systems, especially with regards to the omission of safety and system protection features.
→ Deliberately selecting cheaper undersized equipment.

Common faults on cheap freezer room installations we regularly observe are:

→ Undersized refrigeration equipment for the duty cycle.
→ Undersized condensers, causing high discharge temperatures.
→ This intern leads to premature compressor failure.
→ Freezer rooms not performing, not reaching promised temperatures. Common excuses then given to their clients, are high ambient temperatures, doors left open and high traffic in/out rooms.
→ Undersized evaporator coils.
→ This intern leads to high temperature differences between refrigerant and air, causing coil freeze-ups, requiring frequent defrosting.
→ This will cause dehydration and freezer burns (outer surface damage) on the produce stored in the freezer room.

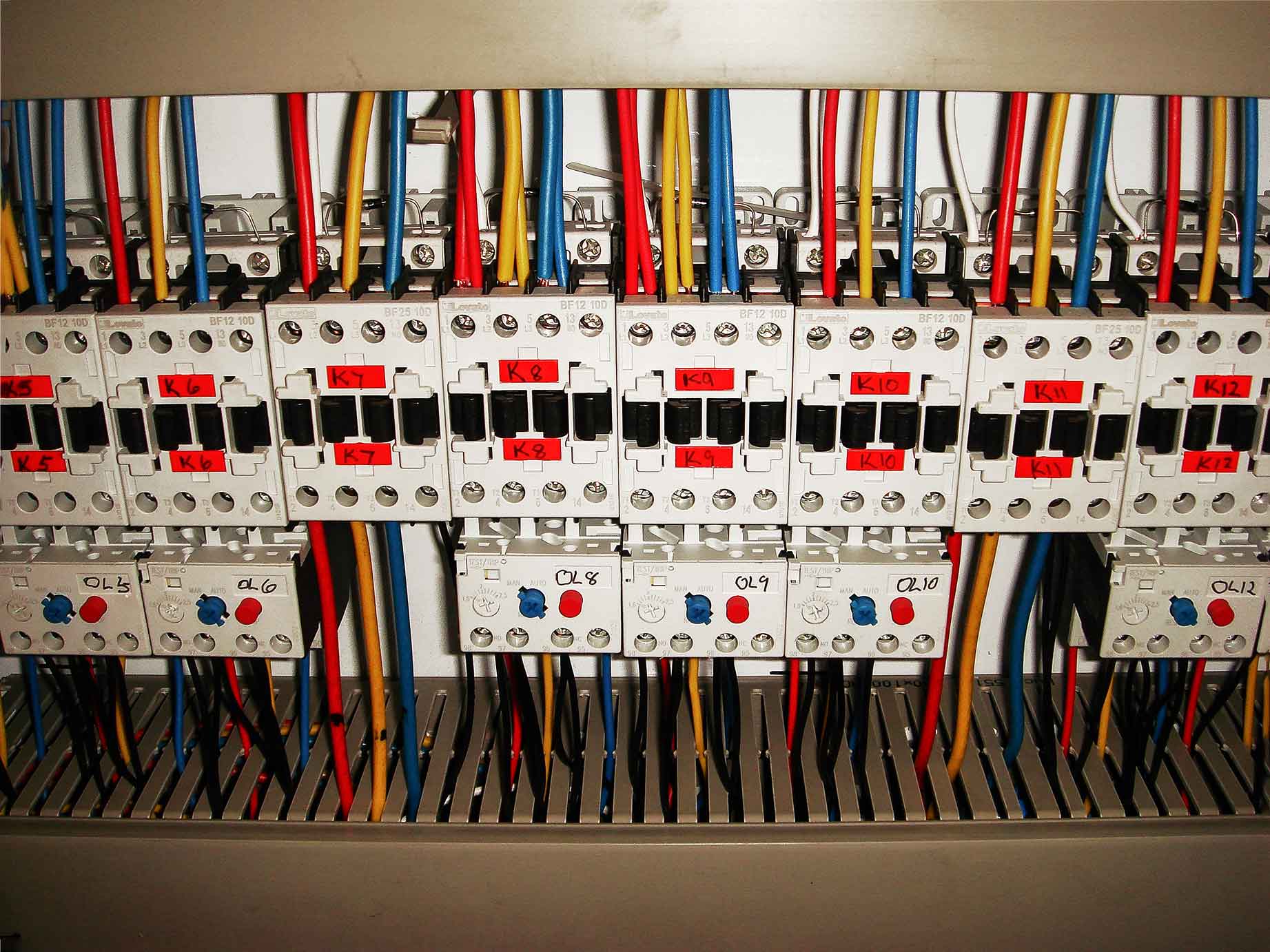

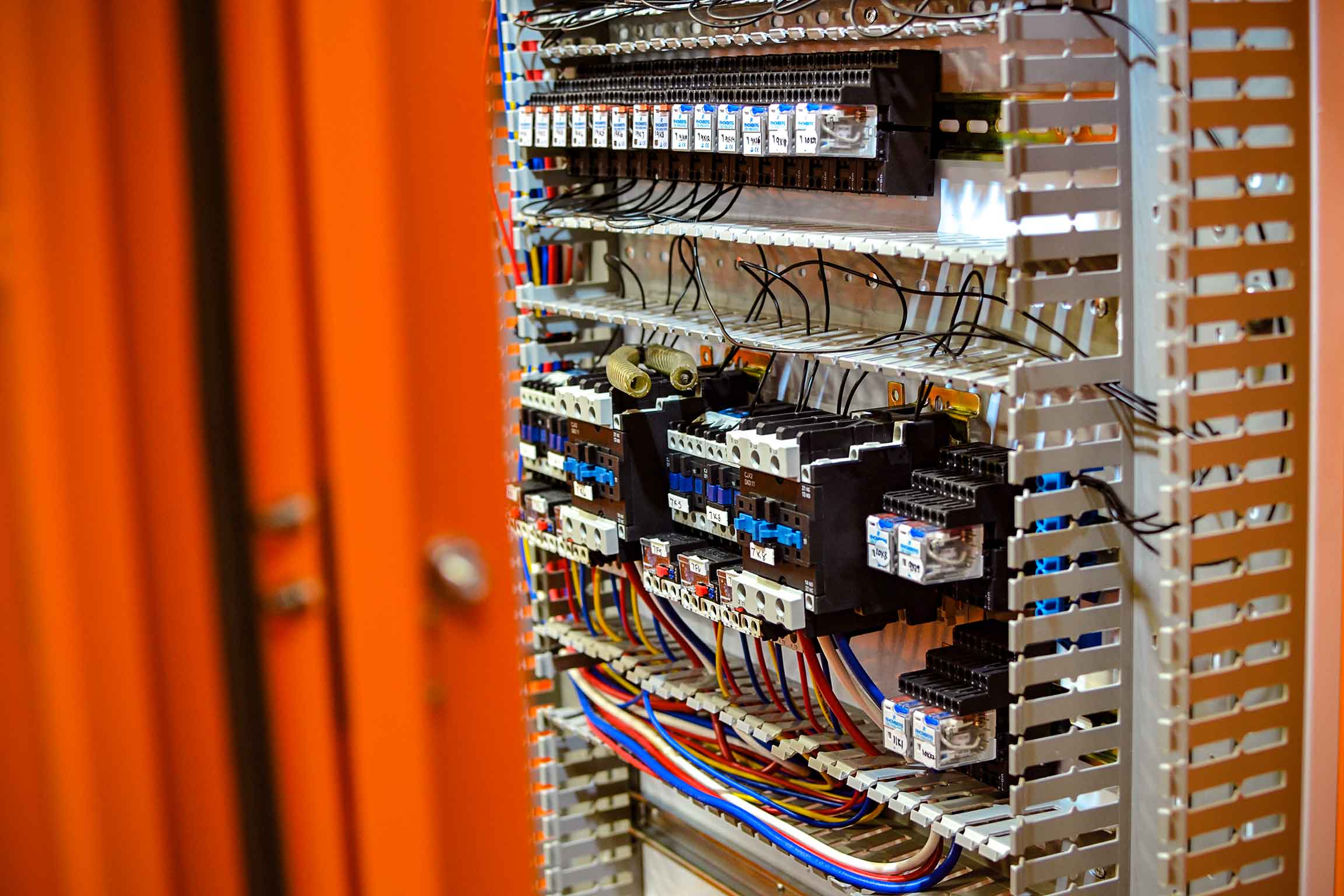

→ Electrical switch gear undersized for electrical duty.
→ This intern leads to premature failure of electrical motors and subsequent lost of produce contained in freezer rooms.

All the above mentioned measures enable companies so supply cheap quotes on which they then deliver substandard freezer room installations which become running soars, causing reoccurring product loses for the respective owners.

How do we know all of this? We know this, because we see this on a daily basis when we get called out to non-functioning, substandard, cheap freezer room installations.

We speak to these highly frustrated business owners who then tell us about their financial product losses due to the cheap installations. We also hear of their deep regret of accepting cheap quotes.

How can you avoid the pitfalls of a cheap quote:

→ Look at the finer details of the quotations.
→ Ask questions.
→ Compare the specifications offered between different quotes.
→ Make sure to ascertain whether the solutions offered will indeed solve your refrigeration problem and serve your current and future needs adequately.
→ Ask for proof in refrigeration theory if need be.
→ But whatever you do, make sure that you compare apples with apples.

Case Studies

case study A

We were called out to a facility (where the owner accepted a cheap quote) now suffering the consequences of a very poorly designed, installed and maintained walk-in freezer room refrigeration system installation.

Here is our observations as made on site.

Preliminary fault diagnoses - front freezer room

→ There were no visible evidence of "water logged panels" as claimed by the company who did the installation.
→ There are problems around the sliding door, but it is not the cause of the current temperature losses being experienced.
→ The air-cooled condensers are undersized for their application.
→ A well-designed system will most definitely NOT REQUIRE water to be sprayed onto the condensers to cool them down during hot days. This is absurd.
→ The compressor shows evidence of high discharge temperatures.
→ As a result, there will be a gradual loss in capacity over time, followed by an eventual premature failure of the compressor.
→ The current refrigeration equipment is under sized and thus will not succeed in maintaining -25°C with a full product load of 75 000kg.
→ The current refrigeration equipment refrigeration capacity is 32.940kw, which will yield a room temperature of -25°C under ideal conditions ONLY.
→ We would recommend a refrigeration capacity of 54.000kw to maintain a room temperature of -25°C with a full product load of 75 000kg.
→ We also recommend a custom designed air curtain. This will reduce the moisture entering the room. It will also reduce temperature fluctuations.
